94v0 circuit board pcb prototype service

Product Description

94v0 circuit board pcb prototype service Aabout PCBQuick PCBQuick is a PCB supplier that offers quick online quote service. We can provide customized solutions for LED lighting PCB and UPS PCB. Our Rigid pcb/ FPC/LED PCB/PCBA is exported to all parts of the world.  PCBQuick continuously improves the quality and service. By the end of 2018, we have already served more than 300 companies worldwide.   Why us ? 1) Professional engineer team --help you to check design and do engineering before production. 2) Rich expierences in pcb production industry--provide high quality and competitive price pcb. 3) After-sales service--every problem you have will get our professional advice and solution. 4) Constant follow up-- make us have the fast reaction of your requirement. 5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated. Our Service We are able to provide you best electronics services. 1) PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 ) 2) FPC,PCB Copy Service. 3) PCB Assembly Service. (SMT, BGA, DIP). 4) PCBA Final Functional Testing. 5) PCBA Copy Service. 6) Electronic Components Purchasing & BOM List Purchasing Services. 7) PCB SMT Stencil. (Laser cut & Etching). Process Capability
FR-4 Process capability
NO Item Craft Ability
1 Surface Finish HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc
2 Layer 1-32 layers
3 Min.Line Width 4mil
4 Min.Line Space 4mil
5 Min.Space between Pad to Pad 3mil
6 Min.Hole Diameter 0.20mm
7 Min.Bonding Pad Diameter 0.20mm
8 Max.Proportion of Drilling Hole and Board Thickness 1:10
9 Max.Size of Finish Board 23inch*35inch
10 Rang of Finish Board′s Thickness 0.21-3.2mm
11 Min.Thickness of Soldermask 10um
12 Soldermask Green,Yellow,Black,White,Red,transparent photosensitive solder mask,Strippable solder mask
13 Min.Linewidth of Idents 4mil
14 Min.Height of Idents 25mil
15 Color of Silk-screen White,Yellow,Black
16 Date File Format Gerber file and Drilling file,Report series,PADS 2000 series,powerpcb series,ODB++
17 E-testing 100%E-Test:High Voltage Testing
18 Material for PCB High TG Material:High Frequence(ROGERS,TEFLON,TADONIC,ARLON):Haloger free Material
19 Other Test Impedance Testing,Resisitance Testing,Microsection etc
20 Special Technological Requirement Blind&Buried Vias and High Thickness Copper

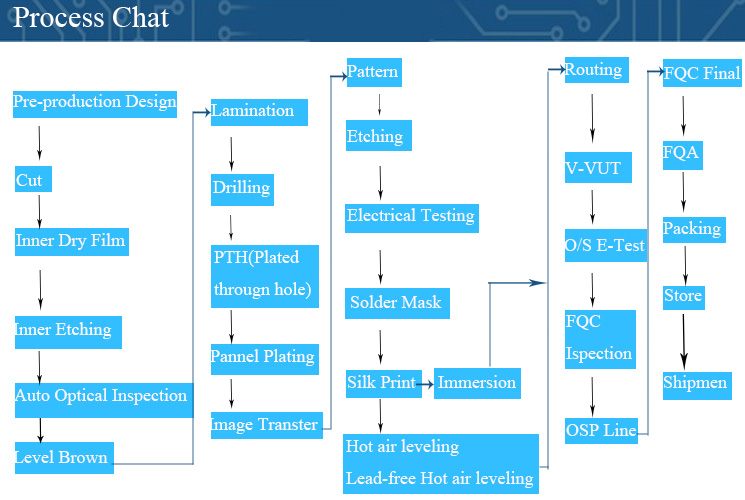

  Welcome to ask us ! Production Flow PCB&PCBA Products Certifications If you need more clear certification, please contact us! FAQ Q1.What is needed for quotation? PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...) PCBA: PCB information, BOM,( 57832683,Testing documents...) Q2. What file formats do you accept for production? Gerber file: CAM350 RS274X PCB file: Protel 99SE, P-CAD 2001 PCB BOM: Excel (PDF,word,txt) Q3. Are my files safe? Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. Q4. MOQ? There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility. Q5.Shipping cost? The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost. Q6.The price of PCB and the price of the whole order Due to limitations, the system can only provide you with the approximate price of PCB board, but your project also includes other costs: mold fee, test fee, engineering fee, etc. So please contact us before placing the order, and we will provide you with an accurate quotation according to your PCB parameters and quantity!

Contact us if you need more details on pcb prototype. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pcb prototype service、94v0 circuit board. If these products fail to match your need, please contact us and we would like to provide relevant information.
